Here's the dirty little secret about your diesel: the stock lift pump in your tank was built to the absolute bare minimum it could be and still leave the factory. It's not designed to feed a tuned engine, it's not designed to filter water and air worth a damn, and on too many trucks it's not designed to feed anything for very long. That's why the smart money bolts on a FASS fuel system the same week they pick up the truck.

Whether you're towing 20,000 pounds across the country, sending it on a sled, or just want your high-pressure pump to live a long, boring life, FASS is the lift pump everyone in the diesel world points to. Here's exactly what a FASS does, why your CP3 or CP4 desperately wants one, and how to pick the right flow rate for your truck — straight from the FASS Fuel Systems collection at DNR Customs.

What is a diesel lift pump (and what does it actually do)?

A diesel lift pump is the supply pump that pulls fuel out of your tank and pushes it forward to your high-pressure injection pump (your CP3, CP4, or stock supply pump). It lives between the tank and the engine, runs off 12V, and does three things that matter:

• It delivers fuel under pressure instead of letting the high-pressure pump suck it forward against atmospheric pressure.
• It separates air and water out of the fuel before it hits anything expensive.
• It filters the fuel — typically through stout primary and secondary filters that catch contaminants the OEM filter just nods at.

The result is a steady, clean, air-free supply of fuel hitting your high-pressure pump on demand — which is exactly the diet that keeps a CP3 happy for hundreds of thousands of miles and a CP4 from grenading your whole fuel system in a single highway pull.

Why your CP3 or CP4 will love you for it

Your high-pressure pump is the most expensive single component in your fuel system. If you're running a CP4 (2011+ Power Stroke, 2011+ Duramax, 2019+ Cummins), it's also the most fragile — and we covered why in our deep dive on the CP4 pump disaster. Whatever pump you're running, the conditions it sees at its inlet decide how long it lives:

• Aerated fuel means the pump pulls air, runs hot, and wears prematurely.
• Water in the fuel means rust, lacquer, and instant injector damage.
• Contaminated fuel means abrasive particles eating the pump and injectors at 30,000+ PSI.
• Insufficient supply means the high-pressure pump cavitates and starts shaving itself.

A FASS solves all four. That's why it's not really a "performance mod" so much as a baseline reliability mod. If you plan to keep your truck more than a couple of years — or you've added power — you need one. Period.

Symptoms of a weak (or missing) lift pump

Stock supply systems on these trucks fail in slow, sneaky ways. A lot of owners don't realize their lift pump is dying until they've already cooked an injector. Watch for:

• Hard starting after sitting overnight (loss of prime)
• Sluggish throttle response, especially when towing
• Fuel pressure dropping off under hard load
• Air bubbles visible in clear fuel lines or filter housings
• The factory in-tank pump making a buzzing or whining sound
• Premature filter clogging or visible debris

Catch any of that, and the cheapest move is to skip replacing the stock pump and step straight up to a FASS that won't have you back in the garage in two years.

The FASS lineup — what each pump is for

FASS doesn't make one pump and call it good. They build application-specific systems, and picking the right one matters. Here's the cheat sheet on what's in the DNR Customs FASS lineup:

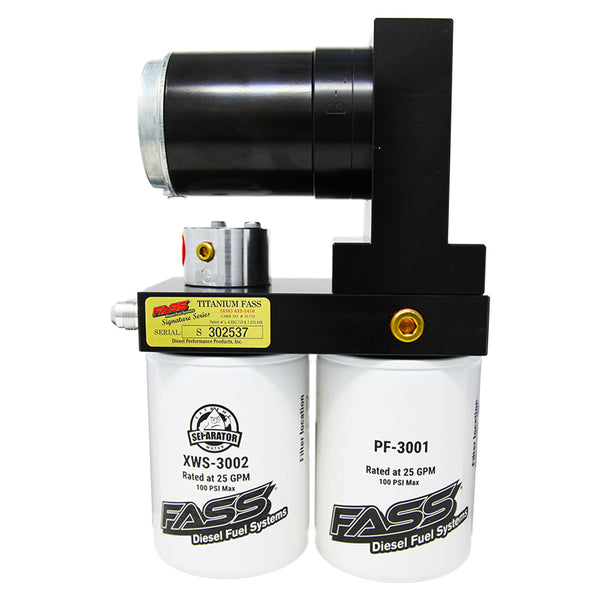

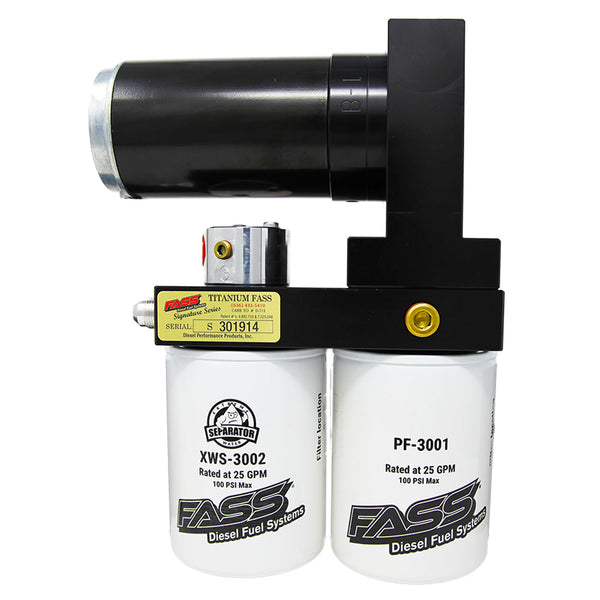

FASS Titanium Signature Series (TS)

The flagship. This is the pump 95% of diesel owners should be buying. It packs FASS's full filtration suite — particulate filter, water separator, and air/vapor extraction — into a rugged, serviceable package, and it comes in flow rates from 100 GPH on up to feed big-boy builds. If somebody says "FASS" without qualifying it, they almost always mean this.

FASS Diesel Fuel Brake

Lower-cost option that still delivers the FASS pressure and filtration story without the full Signature Series feature set. Good fit for budget-minded stock or lightly modified trucks.

FASS Class 8 / Industrial

For Class 8 trucks and serious commercial applications — bigger flows and ratings to keep over-the-road rigs going.

Not sure which pump matches your truck and your goals? That's exactly what our team does all day. Send us your specs and we'll match you to the right FASS.

Platform by platform: picking the right FASS

FASS pumps are sold in truck-specific kits with mounting brackets, lines, and fittings that fit YOUR truck — not a one-size-fits-nothing bolt-on. Here's how the picks shake out per platform.

RAM Cummins (5.9L & 6.7L)

The Cummins crowd has been running FASS the longest, and it shows — the kits are dialed. For a stock to lightly tuned 5.9 or 6.7, a 165 GPH Titanium is the sweet spot. Pushing real power? Step up to a 220 or 250. Building a competition truck? You're in 300+ GPH territory. Browse the matching Cummins parts while you're at it.

Ford 6.7L Power Stroke

The 6.7 Power Stroke has a particularly weak factory supply system — and a particularly fragile CP4 hanging downstream of it. A FASS is one of the smartest things you can bolt on. 165 GPH for stock and tuned; 220 for big tunes or towing rigs. Round out the package from our Power Stroke collection.

GM Duramax (LB7 through L5P)

Same story on the GM side — a FASS feeds the CP3 (or CP4 on LML/L5P) the clean, pressurized fuel it needs. 165 GPH for daily-driver duty, step up for tuned or worked trucks. Pair it with the rest of the Duramax parts we carry.

Sizing: 165 vs 220 vs 250 GPH — pick once, pick right

The most common question we get on FASS is, "do I need the bigger pump?" Here's how to think about it.

Two rules of thumb that won't steer you wrong:

• Buy one size bigger than you think you need. The price difference is small; the pain of yanking your pump in two years to upsize is not.
• Feed your tune, not your stock truck. If you ever plan to tune, build for the tuned version.

Still unsure? Tell us your truck and your goals — we'll size it for you in five minutes.

FASS Titanium fuel filters: the unsung hero

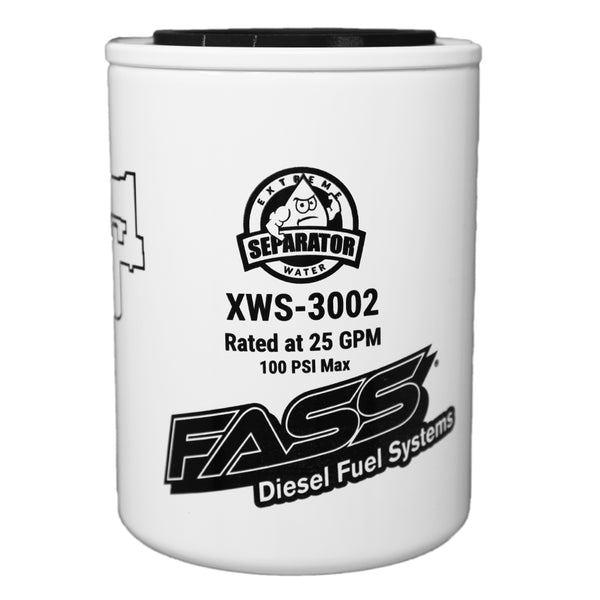

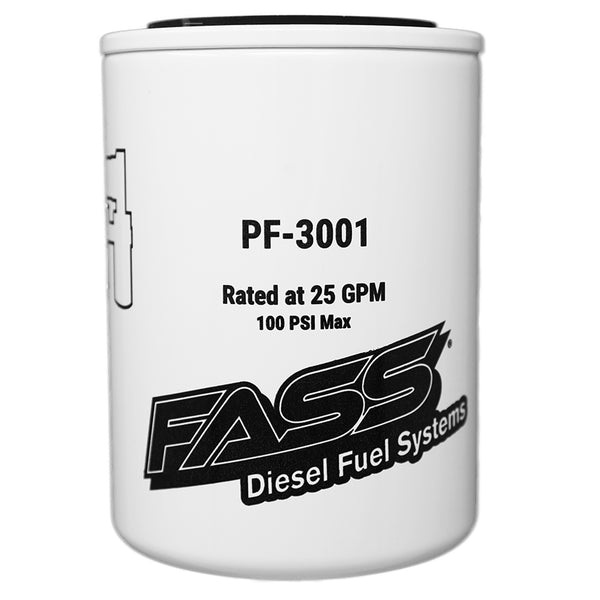

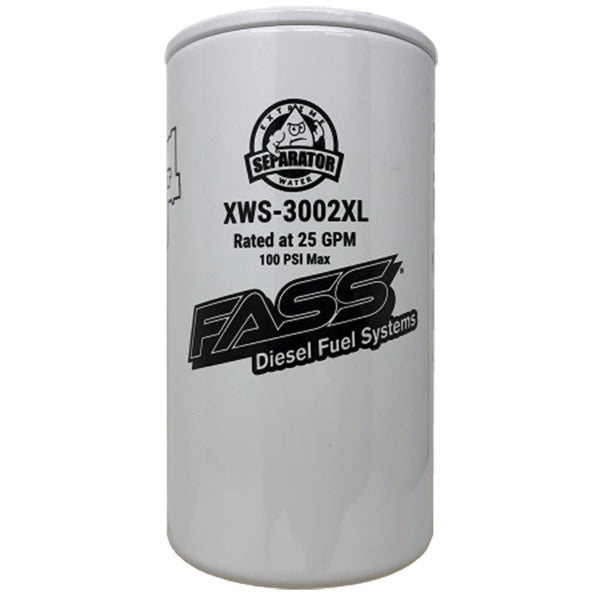

Half of the magic in a FASS is the filtration. The Titanium Signature Series filter package (and the matching service filters) is what keeps your high-pressure pump and injectors alive. They catch finer particles than OEM filters, pull water out aggressively, and breathe out vapor before it can mess with combustion.

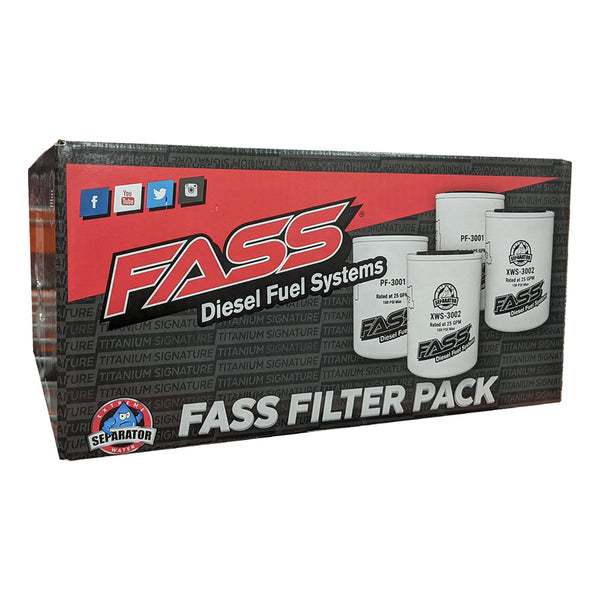

A FASS without scheduled filter service is just an expensive paperweight. Keep replacement FASS fuel filters on the shelf, change them on the recommended interval, and inspect the old ones each time — they tell you exactly what your fuel supply is doing. We stock the full filter range and service kits inside the FASS collection.

Install, sumps and supporting parts

A FASS isn't a five-minute install, but it's well within reach for an experienced DIYer with a weekend, a lift, and a friend. The kit includes the pump, brackets, wiring harness, and fuel lines. Most installs also pair with:

• A fuel tank sump — taps into the bottom of the tank to grab fuel from the lowest point (instead of through the OE pickup), which prevents pickup-tube starvation and lets you run the tank lower without sucking air.
• Bigger supply lines for trucks targeting higher flow rates.
• A relocate kit or remote service kit if your truck's frame geometry calls for it.

If your install plan also includes injectors, a CP3 swap, or a CP4 disaster prevention kit, do it all at once — you've already got the system apart. Browse fuel system parts and the S&S Diesel collection for what to bundle. Need a tech to button it up? Get a quote and we'll handle the install too.

FASS vs the stock pump: the math

Whether you compare a FASS to a worn-out stock pump or to a replacement OEM unit, the math is brutal. The stock pump:

• Doesn't separate air or water at any meaningful level.
• Doesn't filter to FASS standards.
• Doesn't keep up with tuned power.
• Will fail again, often sooner than you think.

A FASS bolts on once and feeds your truck for the rest of the time you own it. Add in the injectors and high-pressure pump you didn't have to replace because your fuel was clean and pressurized the whole time, and it's the rare upgrade that pays for itself outright — not in horsepower, but in avoided repair bills. The cheapest CP4 failure, after all, is the one that never happens. (See our companion guide on the best diesel lift pumps for a head-to-head with FASS's competition.)

Other parts that pair with a FASS

When you've got the fuel system open, it's the right time to round out the build. The high-value pairings:

• CP4 disaster prevention or DCR conversion if you're on a 2011+ Power Stroke, Duramax, or 2019+ Cummins. Required reading: our CP4 disaster prevention guide.
• Performance injectors from our injector lineup if you're stacking power.
• An upgraded fuel filter and water separator setup if you don't already run one.
• Lubricity additive in every tank to make up for ULSD's weak lubricity.

If you're plotting a full 6.7 Cummins build, do yourself a favor and read our 6.7 Cummins first 5 upgrades guide — it'll save you from buying the wrong stuff in the wrong order.

FASS vs AirDog: the honest comparison

If you've spent more than five minutes in a diesel forum, you've seen the FASS vs AirDog argument. Both are quality, full-featured lift pump systems from companies that have been at this a long time, and you can build a great truck around either one. Here's our honest take after installing a stack of both:

• FASS tends to win on serviceability, the breadth of the Titanium Signature Series lineup, and the depth of platform-specific kits. The filter housings are dead simple to service, and the way the system handles air extraction is dialed.
• AirDog has its own loyal following and a strong product, especially in certain flow categories.
• The truth: either will protect your fuel system if you install and service it right. Pick the one whose kit fits your truck and your install plan cleanest, and don't lose sleep over the debate. We carry FASS because it's what our techs install most often and what we've seen survive the hardest abuse. Need a head-to-head buying decision? Our best diesel lift pumps guide goes deeper on the comparison.

In-line vs in-tank: where the pump lives matters

One more decision that catches owners off-guard: a FASS replaces (or bypasses) the stock in-tank supply pump with an in-line, frame-mounted pump. That has a couple of practical implications:

• Easy service. Need to swap a filter or troubleshoot? It's right there on the frame rail. You're not dropping the tank to chase a stock pump.
• Better cooling. Frame-mount means airflow, which means a happier motor and a longer-lived pump.
• Reliable priming. A pump that pushes fuel from outside the tank — combined with a proper sump or pickup setup — is more consistent than the stock suction-driven setup that fights for prime when fuel is low.

It's not glamorous, but it's the kind of design detail that separates "lift pump that works for ten years" from "lift pump that becomes a problem all its own." FASS got this right years ago.

Frequently asked questions

What is a diesel lift pump?

A supply pump that pulls fuel out of the tank and delivers it under pressure — clean, filtered, and air-free — to the high-pressure injection pump that feeds the injectors. A FASS Titanium Signature Series is the gold-standard aftermarket option.

Do I need a lift pump on a diesel?

If you plan to keep the truck more than a couple of years, add any tuning, tow heavy, or run a CP4-equipped truck (where the consequences of fuel-supply problems are catastrophic), the answer is unambiguously yes. Even on bone-stock trucks, a FASS dramatically extends the life of every expensive component downstream.

How does a diesel lift pump work?

A FASS uses an electric pump motor to pull fuel from the tank, push it through a particulate filter and a water separator, vent off air and vapor, and deliver clean pressurized fuel forward to the high-pressure pump.

What size FASS do I need?

Stock to mild tune: 150–165 GPH. Hot tune or tow rig: 220 GPH. Built truck with big injectors and tuning: 250+ GPH. Race/comp: 290+. When in doubt, buy one size up.

Will a FASS save my CP4?

It significantly reduces the risk by feeding the CP4 clean, consistent, air-free fuel — but it can't undo the CP4's fundamental lubrication weakness. Pair a FASS with an S&S Disaster Prevention Kit or a full DCR conversion for real peace of mind.

Can I install a FASS myself?

Most experienced DIYers can with a weekend and a lift. If you'd rather have it bundled with a disaster prevention kit, sump, and injectors, our certified diesel techs will handle it — just send us your build.

How often do FASS filters need to be changed?

Follow FASS's recommended service interval (typically every 30,000 miles or annually for the particulate and water separator filters, sooner if you ever see contamination). Keep replacement FASS fuel filters on the shelf — they're cheap insurance.

How long does a FASS lift pump last?

Service it on schedule and a FASS will routinely outlast the rest of your truck. We've seen Titanium Signature Series pumps still going strong well past 300,000 miles — and when they do eventually need attention, they're frame-mounted, so a rebuild or replacement is straightforward instead of a tank-drop nightmare.

Is a FASS worth it on a stock truck?

Yes — and arguably more important on a stock truck than a built one. The stock truck owner is usually keeping the truck for the long haul and counting on it to never strand them. That's exactly the use case the FASS was built for: protect the high-pressure pump and injectors, deliver clean fuel for hundreds of thousands of miles, and stay out of the diesel shop.

Bolt one on once, feed your diesel forever

A FASS isn't the flashy mod that's going to win you internet points at the next truck show. It is, however, the mod that quietly keeps your truck out of the diesel shop, makes every other upgrade you bolt on more effective, and protects the most expensive parts in your fuel system from the most common ways they die.

Shop the full FASS Fuel Systems collection at DNR Customs, round out the package from our fuel system lineup, and if you want a human to spec the exact pump and supporting parts for your year, platform, and power goals, request a quote — we'll size it right the first time.
