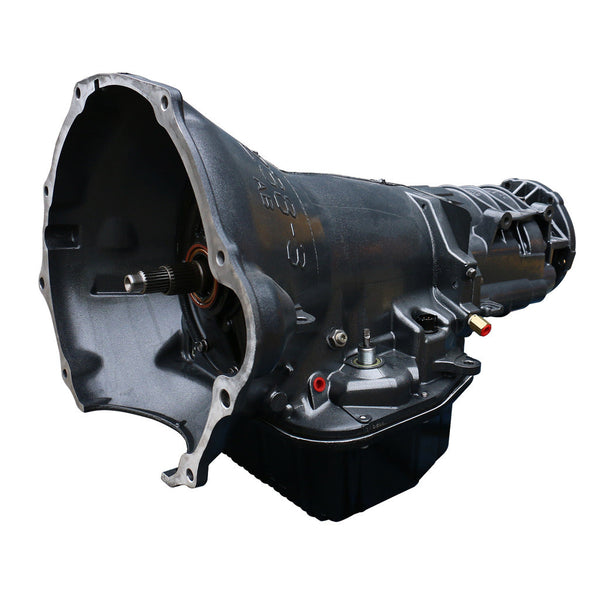

The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD's heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!
FEATURES
- Increase the durability of your drivetrain
- Stock thrust bushings replaced with roller Torrington bearings
- Every transmission is tested on a dyno
- Upgraded Valvebody
- Increased line pressure to 190-200psi
- No shuttle shifting problems
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Billet barrel strut
- Billet band lever
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- Clutch Count: DIRECT 6
- Clutch Count: FORWARD 5
- High temp/energy Raybestos band
- Upgraded governor pressure transducer (47RE/48RE)
- Upgraded governor solenoid - Twice the burst pressure than stock
- Upgraded 48RE sunshell
- Cooler line case saver in every transmission
- BD auxiliary full flow filter kit for extra protection
- BD rigid aluminum heavy duty transmission pan
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Pan adds 2qt extra oil capacity
- Not warranted for Race or Sled Pull use
INSTALL TIME
WARRANTY
PartsLabourNote- No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
NOTE
- BD torque converter must be installed at the time of installation of the transmission - use of a 3rd party or OE converter will invalidate the transmission warranty
EMISSIONS
- This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
