$6,745.00

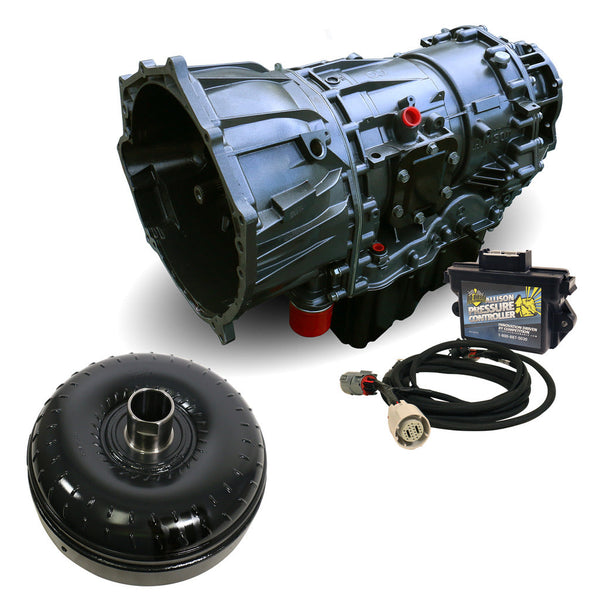

When you purchase a BDtransmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with...
Availability: In Stock
Sku: 1064754BM
Vendor: BD Diesel

When you purchase a BDtransmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD's own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel's power and torque demands, the clear choice is BD.

FEATURES
TRANSMISSION:
  • Increase the durability of your drivetrain
  • BD Aluminum HD deep transmission pan, increases oil capacity by 3.5qt
  • Comes with BD Allison Pressure Box delivering up to 275PSI of line pressure
  • High energy GPZ(TM) frictions
  • Increase in steel mass for better heat dissipation
  • Increased clutch count
  • Clutch Count: C1 8 clutches (14% increase over stock)
  • Clutch Count: C2 7 clutches (17% increase over stock)
  • Clutch Count: C3 7 clutches (75% increase over stock)
  • Clutch Count: C4 7 clutches (17% increase over stock)
  • Clutch Count: C5 7 clutches (17% increase over stock)
  • Each transmission is dyno tested
  • Billet Input Shaft to take the "snap" from rapid throttle and high horsepower
TORQUE CONVERTOR:
  • Triple Disc
  • Enhanced Stall - Street/Towing applications
  • HD springs absorb shock of engagement
  • Stamp forged 1-piece cover
  • Eliminates warpage from clutch heat
  • Taller cover can be rebuilt more often
  • Trapezoid teeth design
  • Engineered tighter tolerances
  • Self-centering trapezoid teeth design increases contact decreases wear and chatter
  • Thrust bearings - not plastic thrust washers
  • Riveted piston ensures alignment & eliminates vibration or embrittlement from welding
  • Cast stator designs maximizes torque
  • New sprag components ensure long term durability
  • Furnaced brazed turbine fins for improved fluid coupling efficiency
  • Reduced overall weight by 12lbs compared to competitors
  • Utilizes a new double cage stator sprag for increased strength, reduces common stator failures with the OE design.
INSTALL TIME
  • 9 Hours
WARRANTY
Parts
  • 36-Months
  • 150,000 Miles
Labour
  • 12-Months
  • 24,000 miles
Note
  • No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
EMISSIONS
  • This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
