All kits come with everything you need to allow for an easy install. Now get these kits with Borg Warner SX-E turbo options and expect even more. A BD exclusive feature of the SX-E turbos is that they are waste-gated to mount on stock T3 manifolds.
FEATURES
- The SX-E turbo was designed for performance with a 360 thrust bearing and enhanced compressor wheel and housing
- Larger compressor blade surface but with a smaller inducer results in quicker spooling, more flow than similar sized wheels
- The high strength FMW Forged Milled Wheels are lighter and stronger and withstand higher wheel speeds
- BD exclusive feature of a heavy sprung waste-gated T3 turbine housing that mounts onto stock exhaust manifolds
- BD's HD Waste gate and bracket holds boost and prevents over speed damage
- Turnbuckle Boost Control allows for ease of adjustment for altitude and extreme tuning

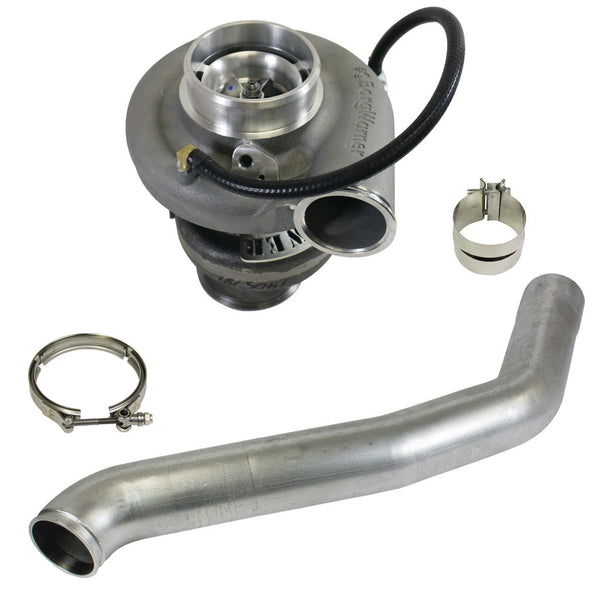

- Kit comes with downpipe, V-band clamp, band clamp
- Comp Wheel: 64.5mm 2.54in
- Turbine Wheel: 80mm 3.15in
- A/R Ratio: 0.80
- Flow: 82 Lb/min
- Approximate rated 600hp (depending on truck configuration)
INSTALL TIME
WARRANTY
PartsNOTE
- Not for sale on licensed California vehicles
- Turbo mount exhaust brake cannot be installed with this kit - use remote mount exhaust brake
EMISSIONS
- This product has met EPA's reasonable basis requirements and is legal for sale and use within the jurisdiction of the federal EPA. (EMS:2)
